Electromagnetic Solutions

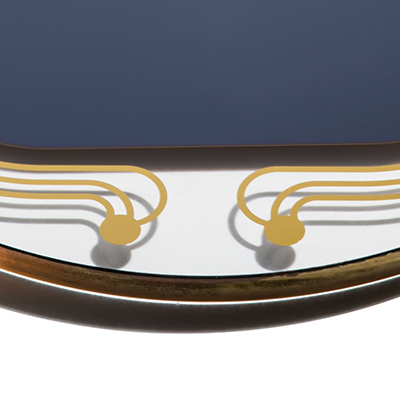

Reynard Corporation produces two types of Transparent Conductive Coatings that have low resistance and high transmission: Indium Tin Oxide Transparent and Protected Gold. These coatings are used to shield sensitive electronic components from electromagnetic and radio frequency interference (EMI/RFI). Instrument Display Windows can be supplied complete with a Conductive Coating, Anti-Reflection (AR) Coating and Bus Bars for conductivity or grounding.
Custom prototypes to volume production are available.
Contact us with your custom requirements!
SPECIFICATIONS:
| Conductive Coating Types: | Indium Tin Oxide (ITO) and Protected Gold Transparent |
| Wavelength: | 400nm to 700nm |
| Operating Temperature: | ITO: -196°C to 1400°C PGT: -50°C to 100°C |
| Substrate Materials: | BK7, Fused Silica, Si, Ge & Plastic |
APPLICATIONS
- Electromagnetic Shielding
- Lightning Strike Protections
- Electrostatic Sensitivity
- Medical Monitors
- Industrial Control Systems
- Weapons Systems
- Aerospace Systems
- Display Windows
- LCD Fabrication
- Heaters
- Touch Panels
- CRT Faceplates
- Heads-Up Displays
