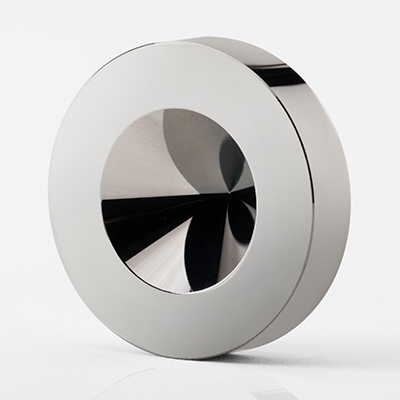

Single Point Diamond Turning & Flycutting
Reynard Corporation offers single point diamond turning (SPDT) in-house capabilities to produce 6mm to 250mm diameter high-quality precision optical components for aerospace, military and commercial industries. Our Nanoforms, Ultra Precision Machining Systems by Precitech are used for the diamond turning multi-stage process to achieve sub-nanometer level surface finishes and sub-micrometer form accuracies. All optical elements are designed, manufactured, coated and tested in-house.
Contact us with your custom requirements!
GENERAL CAPABILITIES
- Achromats
- Aluminum Mirrors
- Aspheric
- Axicons
- Cylindrical
- Diffractive Asphere
- Elliptical Surface
- Flat Optics
- Freeform
- Fresnel Lens
- Infrared Lenses
- IR/UV Lenses
- Lens Arrays
- Linear Fresnel Lenses
- Off-Axis Asphere
- Parabolic Surface
- Plastic Fresnel Lenses
- Prisms
- Reverse Axicon 360° Windows
- Singlets
- Spherical
- Torics
- Windows
- Prototype to Volume Production
OPERATIONAL CAPABILITIES
- Axis Symmetric Grinding
- Polygon Flycutting
- Rotary B-axis Grinding
- Spiral Milling
APPLICATIONS
- Camera Systems
- Telescopes
- Video Projectors
- Lasers
- Missile Guidance Systems
- Airborne Optical Systems
- Thermal Imaging
- Detectors
- Medical Products
- Engineering Models
MATERIALS
- Acrylic Plastic El Nickel (Ni)
- Aluminum (Al)
- Chalcogenide
- AMTIR series
- GASIR series
- Schott IRG26 (IG6)
- 1173
- Calcium Floride (CaF2)
- Cleartran Zinc Selenide (ZnSe)
- Copper (Cu)
- Germanium (Ge)
- Indium Antimonide (InSb)
- Indium Arsenide (InAs)
- Silicon (Si)
- Stainless Steel (SS)
- Titanium (Ti)
- Zinc Sulfide (ZnS)
- + Other IR, Exotic and III-V Crystals
