Precise Beam Deviation
Reynard Corporation offers custom optical wedges used to reflect or refract light at precise angles and are available in a variety of deviations, wedge angles, shapes, sizes and materials; coated or uncoated.

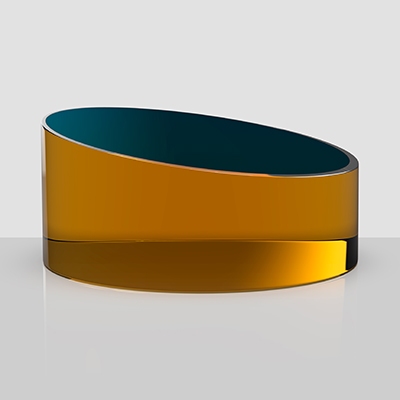

Optical wedges are commonly round with each surface polished flat and tilted to each other at a specific angle. They can be used individually or in a pair. Precise beam deviation can be achieved by placing two wedges in series and rotating each wedge to each other, then rotating the wedges assembly.
Custom prototypes to volume production are available.
Contact us with your custom requirements!
SPECIFICATIONS:
| Optical Wedge Types: | Elliptical, Round, Prisms |
| Wedge Degree: | 0.5 - 45 degrees |
| Coating Types: | Broadband Anti-Reflective, V-Coat, High Energy |
| Sizes: | 12.7mm – 50.8mm Diameter |
| Substrate Materials: | BK-7, UV Fused Silica, CaF2, MgF2, Ge, Si, ZnSe, ZnS |
| Flatness: | 2 waves @633nm |
APPLICATIONS
- Laser Imaging
- Laser Beam Steering
- Laser Targets
- Beam Deviation
- Beam Steering
- Beam Shaping
- Dispersion Tuning
- Multi-Spectral Imaging
- Machine Vision
- Range Finding
- Telescopes
