Vary Light Intensity

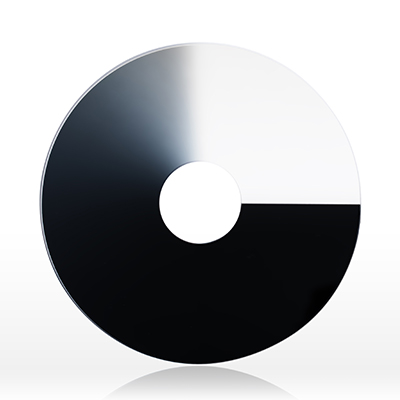

Reynard Corporation offers gradient / variable coatings where the density or pattern can be customized to vary the light intensity from 100% to < 0.1% across the substrate. These types of coatings are designed to attenuate light as the filter is translated or rotated and are compatible with broadband and single-band applications. Large apertures can be achieved by translating or rotating two gradient / variable filters in opposite directions. These coatings come in a variety of configurations and can be designed to operate from the UV to the far-IR.
SPECIFICATIONS:
| Types: | Apodizing, Arc, Circular, Comb & Linear |
| Sizes: | Up to 50" (1270mm) |
| Optical Density Range: | 0-1, 2, 3, 4, or 5 (specify) |
| Wavelength: | 375 to 2500nm (typical) Extended Ranges 200nm to 15µm with specialized substrate material |
| Substrate Materials: | BK-7, Fused Silica & ZnSe |
| Coating Types: | Dielectric & Metallic |
APPLICATIONS
- Imaging Systems
- Optical Systems
- Lasers Attenuation
- Light Attenuation
